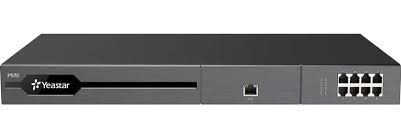

Yeastar P570 VoIP PBX
The Yeastar P570 VoIP PBX stands as a pinnacle of advanced telecommunication solutions, meticulously engineered to revolutionise the way businesses communicate. Combining cutting-edge technology with intuitive design, the Yeastar P570 VoIP PBX redefines the parameters of reliability, scalability, and feature-rich functionality.
Yeastar P570 supports 2 expansion boards. You can install the EX08 board or the EX30 board according to your needs.
| No. | Interface or Expansion Board | Description | ||
|---|---|---|---|---|
| ① | NFC tag | Tap the NFC-capable mobile phone’s back against the Yeastar logo to quickly configure network settings. | ||
| ② | EX30 Expansion Board | Used to connect an E1/T1/J1 line. | ||
| ③ | EX08 Expansion Board | Up to 4 modules and 8 RJ11 ports are supported on the expansion board. The 8 RJ11 ports can be used to connect to different objects:
| ||
Rear panel
| No. | Indicator, Button, or Interface | Description |
|---|---|---|
| ① | Reset button | Press the button and hold for 10 seconds to restore to factory defaults. |
| ② | System Indicator | Indicate the system status.
|
| ③ | Power Indicator | Indicate the power status. |
| ④ | SD Slot | Insert an SD card to store recording files, voicemails, or logs. |
| ⑤ | USB Slot | Insert a USB flash drive to store recording files, voicemails, or logs. |
| ⑥ | WAN Port | For connection to the Wide Area Network (WAN). |
| ⑦ | LAN Port | For connection to the Local Area Network (LAN). |
| ⑧ | Console | Connect the RS232 line to debug the system. |
| ⑨ | Power Switch | Press this button to switch on/off. |
| ⑩ | Power Inlet | Connect the supplied power supply to the port. |
| ⑪ | Protective Earth | Connect to the ground to reduce the risk of electrocution to the user or protect the PBX from the bad effects of external noise in case of a lightning strike. |
| ⑫ | Antenna Socket | Rotate the antenna into the Antenna Socket. |
Conclusion of Yeastar P570 VoIP PBX
The Yeastar P570 VoIP PBX is a testament to Yeastar’s commitment to innovation and excellence in the field of telecommunication solutions. With its unparalleled scalability, robust security features, and extensive functionality, it empowers businesses to streamline communication processes, enhance collaboration, and ultimately achieve greater operational efficiency. Whether for a small startup or a large enterprise, the P570 VoIP PBX stands as a beacon of reliability and performance in the realm of telephony systems. Embrace the future of communication with the Yeastar P570 VoIP PBX.
