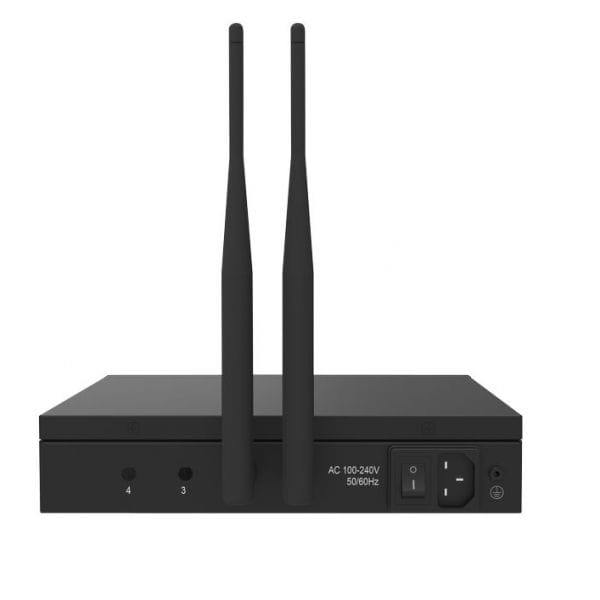

YEASTAR TG200G 2X GSM PORT IP GATEWAY

Yeastar TG200G 2X GSM port IP gateway is a VoIP GSM gateway with 2 channels providing GSM network connectivity for Softswitch and IP PBX. It supports two-way communication: VoIP to GSM and GSM to VoIP. Thus the call costs could be significantly reduced by VoIP or GSM networks.

• 2 GSM Ports
• Cost Savings – Save phone bills tremendously with mobile-to-mobile calls and LCR.
• Back up – Work as a cost-effective backup when the landline network goes down.
• Easy to install – Everything can be easily set up in the Web-based management interface.
• Easy to integrate – High compatibility with major IP PBX and Softswitch brands.

The Yeastar TG200G is a 2X GSM port IP gateway that allows users to connect GSM networks to VoIP networks for cost-effective and efficient communication. With two GSM ports, the TG200G can support up to two simultaneous calls and is suitable for small to medium-sized businesses. The gateway also features SIP protocol support, flexible dialing rules, and easy web-based configuration for seamless integration into existing communication systems. Overall, the Yeastar TG200G is a reliable solution for businesses looking to leverage GSM networks for their VoIP communications.

YEASTAR TG200G 2X GSM Gateway Specifications

• Number of GSM channels (Max): 2
• Network type: 850/900/1800/1900MHz
• Protocol: SIP (RFC3261), IAX2
• Transport Protocol: UDP, TCP, TLS, SRTP
• DTMF: RFC2833, SIP INFO, In-band
• Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM, ADPCM, Speex
• Echo Cancellation: ITU-T G.168 LEC
• LAN:  1 (10/100 Mbps)
• Network:  Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
• NAT Traversal:  Static NAT, STUN
• Size:  110x70x24mm
• Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

 TG200G 2X GSM Gateway Highlights:

• Calling Type – termination (VoIP to GSM), origination (GSM to VoIP)
• Intelligent call routing
• Callback function
• SMS sending and receiving (Web interface)
• LCR (least cost routing)
• Simple web-based configuration
• Cost Savings – Save phone bills tremendously with mobile-to-mobile calls and LCR.
• Back up – Work as a cost-effective backup when the landline network goes down.

Product Includes:

• 1 x TG200 Device
• ,, Power cord
• 1 x Network cable
• 2 x Antenna
• 3 x Mounting Ears
• 9 x Screws
• 1 x Grounding stud and nut
• 4 x Rubber feet
