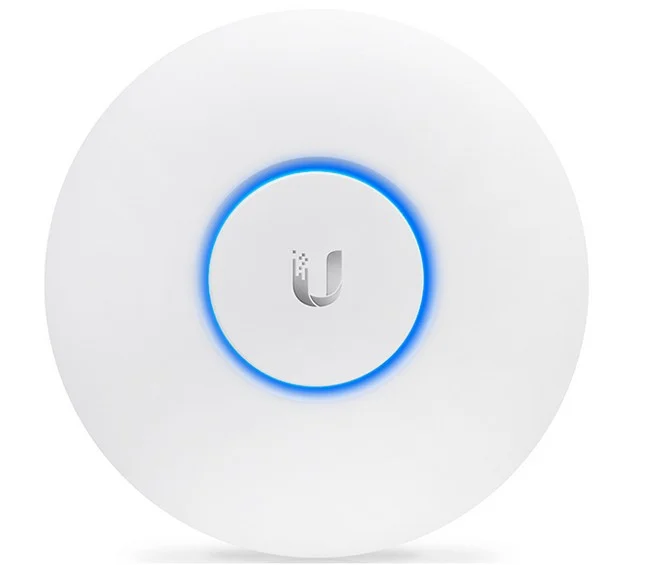

Ubiquiti Unifi UAP-LR Access point

Unifi UAP-LR Access point features the latest Wi-Fi 802.11ac technology in a refined industrial design.

The ideal is for the long-range deployment of high‑performance wireless networks.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Unifi UAP-LR Access point Specs

2.4GHz Speed –       450Mbps

5GHz Speed –           867Mbps

PoE Ports –                 24V Passive PoE

Ports –                        One Gigabit Ethernet port

Range –                       183m

Unifi UAP-AC-LR Access Point Key Highlights

• The innovative long-range antenna provides a wide symmetrical-link coverage area
• Nearly half the size of the standard UniFi AP
• Newly designed UniFi Controller optimises RF Performance
• Gigabit integrated PoE with POE Injector included
• UK Power Supply Cord for POE Injector included
• Range 183m (600ft)

Unifi UAP-LR Access point – General Technical Specifications

• Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70″)
• Weight 240 g (8.5 oz) With Mounting Kits 315 g (11.1 oz)
• Networking Interface (1) 10/100/1000 Ethernet Port
• Buttons Reset
• Antennas (1) Dual-Band Antenna, Tri-Polarity, 3 dBi
• Wi-Fi Standards 802.11 a/b/g/n/ac
• Power Method Passive Power over Ethernet (24V), (Pairs 4, 5 ; 7, 8 Return)
• Power Supply 24V, 0.5A Gigabit PoE Adapter*
• Maximum Power Consumption 6.5W
• Maximum TX Power 2.4 GHz 22 dBm 5 GHz 24 dBm
• BSSID Up to Four per Radio
• Power Save Supported
• Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications CE, FCC, IC
• Mounting Wall/Ceiling (Kits Included)
• Operating Temperature -10 to 70° C (14 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
  – Only the single-pack of the UAP-AC-LR includes a PoE adapter.
