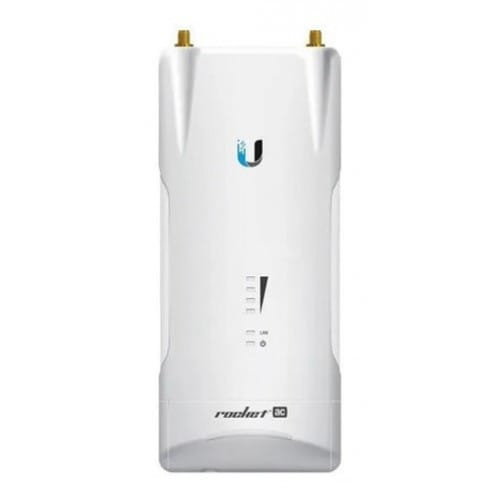

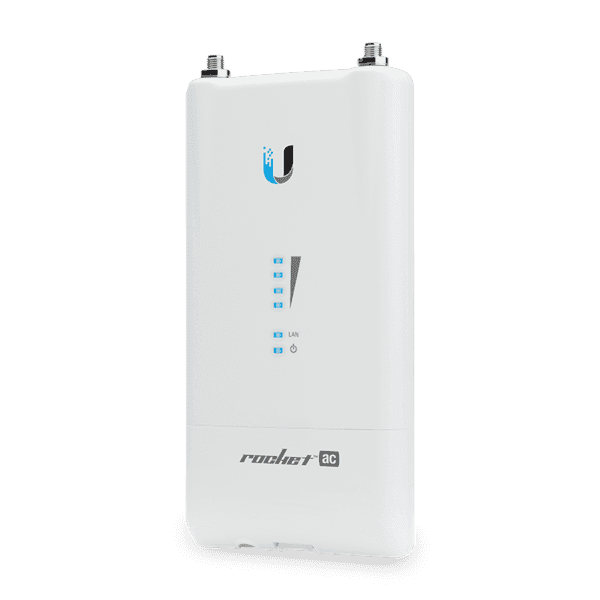

Ubiquiti Rocket 5AC-Lite 5GHz R5AC-Lite Access Point

Ubiquiti Rocket 5AC-Lite 5GHz R5AC-Lite is a Ubiquiti Networks Rocket Base station with 2×2 MIMO, passive 24V PoE, and 802.11ac. Rocket 5AC-Lite has a throughput of up to 500 Mbps.

Spectral Analysis

AirView allows you to identify noise signatures and plan your networks to minimize noise interference.

 AirView performs the following functions:

• Constantly monitors environmental noise
• Collects energy data points in real‑time spectral views
• Helps optimize channel selection, network design, and wireless performance that is:-
– airView runs in the background without disabling the wireless link, so there is no disruption to the network.
– In airView, there are three spectral views, each of which represents different data.

• Waterfall Aggregate energy collected for each frequency
• Waveform Aggregate energy collected
• Ambient Noise Level Background noise energy shown as a function of frequency airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

Features of Ubiquiti Rocket 5AC-Lite 5GHz R5AC-Lite Access Point

5 GHz Frequency Band

• This unlicensed band of plentiful spectrum works well for long-distance links. The Rocket5ac Lite covers the full-band 5‑GHz spectrum.

Gigabit Ethernet

• Deliver high throughput over its wired connection.

Passive Power over Ethernet (PoE

24V Passive PoE functionality includes:-

• Both power and data goes through single Ethernet cable to the Rocket ac.
• Use the included PoE Adapter or an optional PoE switch.

Output Power

• The Ubiquiti Rocket 5AC-Lite 5GHz R5AC-Lite offers up to 27 dBm of output power.

Plug and Play Integration

• AirMAX antenna has a built-in Rocket mount, no tools are needed to install the Rocket ac. (airMAX ac antennas are recommended for optimal performance.)
