The punch-down Tool

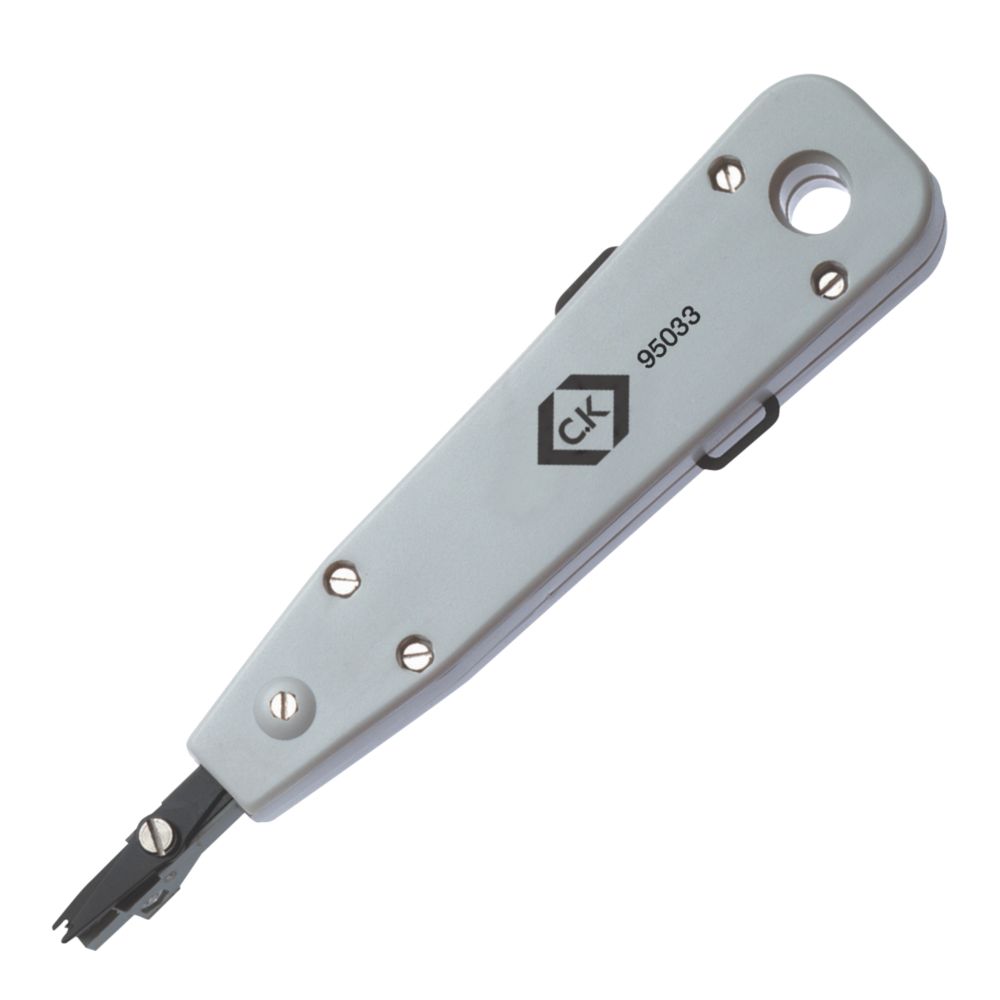

A punch-down tool is a handheld tool used in telecommunications and networking to terminate and connect wires to a punch-down block, patch panel, or keystone jack. It is commonly used in the installation and maintenance of telephone and data systems in homes, offices, and other commercial buildings.

The tool typically consists of a handle and a metal blade or bit at the end. The blade is designed to securely and precisely insert or “punch down” individual wires into the terminals of a wiring block or connector. This process creates a reliable and permanent electrical connection between the wires and the terminal, ensuring proper signal transmission and connectivity.

#image_title

Features of punch-down Tool

To use this tool, the installer first strips the insulation from the end of the cable to expose the individual wires. The wires are then arranged and aligned according to the specific wiring scheme or standard being used, such as T568A or T568B for Ethernet cables. The punch-down tool is then used to push the wires into the appropriate slots on the punch-down block or connector, cutting off excess wire and securing the connection in the process.

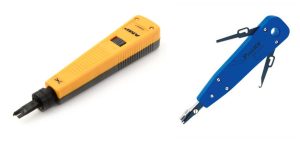

This tools come in various types, including impact and non-impact models. Impact tools feature a spring-loaded mechanism that delivers a forceful impact to the blade when it is pressed down, ensuring a reliable connection with minimal effort. Non-impact punch-down tools, on the other hand, require the user to manually apply pressure to the blade to make the connection.

In summary,

This tool is a crucial instrument for anyone working with telecommunications and networking wiring. It allows for the efficient and accurate termination of wires, ensuring that data and voice signals can be transmitted reliably and consistently. Whether for installing new cabling or troubleshooting existing systems, a punch-down tool is an essential tool for professionals in the field of telecommunications and networking.
