FIRE RESISTANCE CABLE

Fire resistance cables are specially designed to maintain their functionality and structural integrity during a fire. These cables are constructed using materials that can withstand high temperatures and prevent the spread of fire. The insulation and sheathing of fire resistance cables are made from materials such as mica, ceramic, or silicone rubber, which provide protection against fire and heat.

Fire resistance cables are used in various applications, including in buildings, industrial facilities, and transportation systems, where fire safety is a critical concern. These cables are essential for maintaining the operation of essential electrical systems, such as emergency lighting, fire alarms, and communication systems, during a fire event.

It’s important to note that fire resistance cables are not designed to be fireproof, but rather to maintain their functionality for a specified period of time during a fire. The performance of fire resistance cables is tested and certified according to industry standards to ensure their reliability in the event of a fire.

Overall, fire resistance cables play a crucial role in ensuring the safety and functionality of electrical systems during fire emergencies, making them an essential component of fire safety measures in various settings.

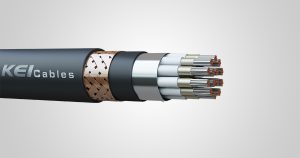

#image_title

Application

Fire rated cables are designed to ensure circuit continuity in the event of a fire. Primarily intended for use in fire detection and fire alarm systems, emergency lighting circuits or if cables need to properly operate when fire resistance improvement is required. Suitable for indoor installation for platforms, pipe, conduits etc.

This cable is best used in areas prone  to risk of fire outbast

Plain annealed copper conductor Cl.1, to BS EN 60288.
Insulation of high performance Silicone rubber.
EI 2 to BS 7655 Section 1.

FIRE RESISTANCE CABLES Technical Data

TEMPERATURES
Operating: 0°C to 80°C
Conductor Max: 180°C
Short Circuit: 350°C

VOLTAGE RATING
U 300
U 500 V

MIN. BENDING RADIUS
10 x OD

LOW SMOKE EMISSION
Transmittance > 60%
(IEC 61034-2)

Available size for standard 30 (PH 30)

FIRE RESISTANCE CABLES Available size for enhanced 120 (PH 120)
