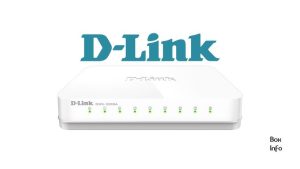

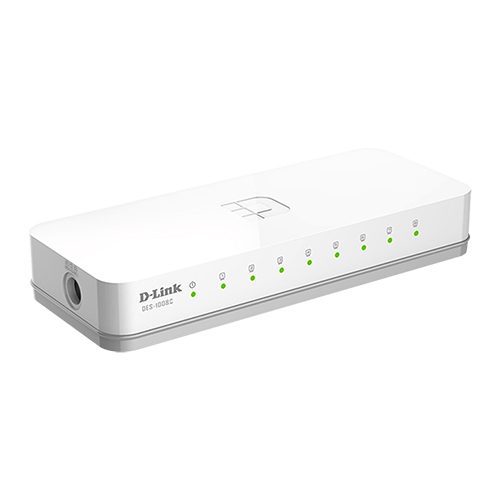

DES-1008A 8-Port 10/100 Switch

The D-Links DES-1008A 8-Port Easy Desktop Switch has eight  ports for easy network expansion;

it is a quick way to upgrade your network to Gigabit connectivity.

An energy-saving power adapter (Energy Star Level V qualified) reduced the use of hazardous substances (RoHS compliant). This switch is truly eco-friendly thanks to recyclable packaging.

Fast And Reliable Networking

D-Links DES-1008A 8-Port Gigabit Switch creates a lightning-fast network for your office by providing high-speed wired connections for up to eight PCs or other devices via its Gigabit Ethernet ports.

The D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch also includes QoS, which prioritizes network traffic to ensure that time-sensitive data is delivered efficiently, even during high-traffic bursts. It’s stylish, simple to use, and IPv6-ready for a dependable network today and tomorrow

D-Links DES-1008A Specifications

Device Interfaces		Eight 10/100 Fast Ethernet LAN ports
Advanced Features		Green Ethernet 1.6 Gbps switching fabric Auto MDI/MDIX crossover for all ports Secure store-and-forward switching scheme Compliance with IEEE802.3az EEE power saving Full/half-duplex for Ethernet/Fast Ethernet speeds IEEE 802.3x Flow Control Plug-and-play installation RoHS compliant Supports 2048-byte Jumbo Frames
Protocol		CSMA/CD
Data Transfer Rates		Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex)
Transmission Method		Store-and-forward
MAC Address Table		2K
MAC Address Learning		Automatic Update
Packet Filtering/Forwarding Rates		Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port
RAM Buffer		96 KB per device
LED Indicators		Per port: Link/Activity Per device: Power
Media Interface Exchange		Auto MDI/MDIX adjustment for all ports
Dimensions		141.5 x 78.5 x 23.8 mm (5.57 x 3.09 x 0.94 inches)
Power		5 V/0.55 A Power Adapter
Heat Dissipation		Power On (Standby): AC input:2.0472 Btu/h Maximum: AC input:7.47228 Btu/h
Power Consumption		Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts Maximum: DC input: 1.78 watts, AC input: 2.19 watts Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts
Temperature		Operating: 0 to 40 °C (32 to 104 °F) Storage: -10 to 70 °C (14 to 158 °F)
Humidity		Operating: 10% to 90% non-condensing Storage: 5% to 90% non-condensing
MTBF		2,137,319 hours
Certifications		CE Class B FCC Class B cUL CB VCCI Class B

#image_title

DES-1008A Datasheet
