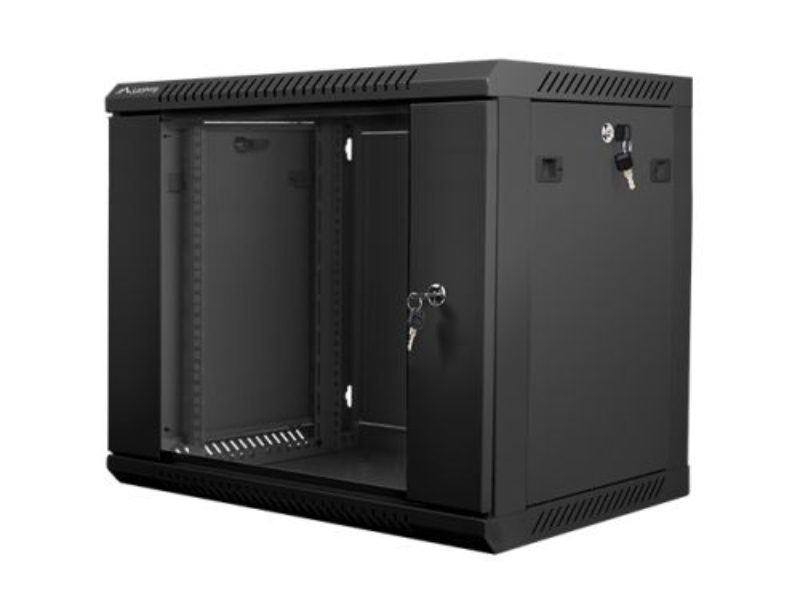

The 9U Data Cabinet 600 x 450 Wall Mount is a compact and convenient solution for housing network equipment and other IT infrastructure in a limited space. This wall-mountable cabinet is designed to securely store and organize networking and communication equipment, such as servers, switches, patch panels, and more.

With a height of 9U and dimensions of 600mm x 450mm, this data cabinet is suitable for small to medium-sized installations. It is constructed from durable materials and features a lockable front door to ensure the security of your equipment.

The cabinet also includes ventilation slots and cable entry points to help maintain proper airflow and manage cables effectively. Additionally, it comes with adjustable mounting rails to accommodate different types of equipment.

9U Rack Dimensions:

#image_title

This 9u Data Cabinet dimension are set as below.

W – width 600mm
D – depth 450mm
H – mounting height 9U – 400.05mm

The Data cabinet is made cold-rolled steel sheet. that cover the sides and the back

9U Data Cabinet Specs / Details

The front door has tempered glass and it can be opened to the left or right side. The kit includes a set of keys, square M6 nuts for rack rail, rack cabinet mounting set and a full set of screws.

Features of the 9U Wall Mountable data cabinet

• 19’’ standard installation, welded frame, reliable structure
• Frame structure intended for self-assembly, easy handling, transportation, to maximize save shipping cost
• Standing or wall mounting installation
• Easy mounting installation (patent)
• Removable side panels
• Holes for entering cable on both of top cover and bottom panel
• Toughened glass front door, turning angle is over 180 degrees

A 19” inch data cabinet is perfect solutions for standard networking.

The Network Cabinet Offers the perfect way to patch UTP cabling at a central location.
