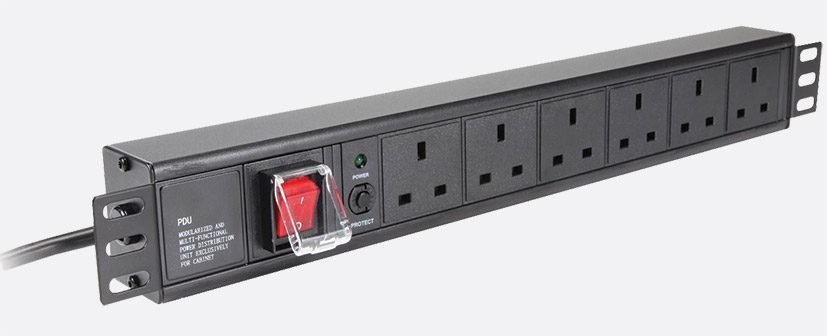

6-Way Power Distribution Unit

A 6-Way Power Distribution Unit (PDU) is a device used to distribute electric power to multiple devices or equipment from a single power source. It is commonly used in data centers, server rooms, and other industrial settings to provide a centralized and organized power distribution solution.

6-Way Power Distribution Unit High Quality, Durable Data Cabinets PDU For Data Cabinet Power Solution. The PDU Conforms to BS1363 Standards.

PDU For Data Cabinets, Suitable for  19″ cabinet use.

The PDU can be Mounted in the data cabinet, The cabinet can be floor-mounted if required.

 Constructed from high-grade Aluminum alloy with polycarbonate sockets, each unit provides a strong tough exterior to take the punishment of prolonged usage.

All units exhibit strong attention to detail with 1mm thick fixing brackets, to retain rigidity, and a shrouded mains switch to protect from accidental operation.

Rear mains cord entry on the horizontal units provides ease of cabinet mounting and individual packing allows the unit to be transported safely without transit damage.

#image_title

Features of a 6-Way Power Distribution Unit PDU;

Six power outlets:

A 6 Way PDU typically comes with six power outlets, allowing for the connection of multiple devices or equipment.

Surge protection:

Many 6 Way PDUs are equipped with surge protection to safeguard connected devices from power surges and spikes.

Overload protection:

The PDU may have built-in overload protection to prevent damage to connected devices in case of excessive power consumption.

Rack-mountable:

Some 6 Way PDUs are designed to be mounted on a standard 19-inch equipment rack, allowing for easy installation and organization of power distribution within a rack enclosure.

Remote monitoring and control:

Advanced 6 Way PDUs may offer remote monitoring and control capabilities, allowing users to;

• monitor power usage
• manage outlets
• receive alerts about power events from a remote location.

Power metering:

Some PDUs feature built-in power metering to provide real-time monitoring of power usage for each outlet, helping users to optimize power distribution and energy efficiency.

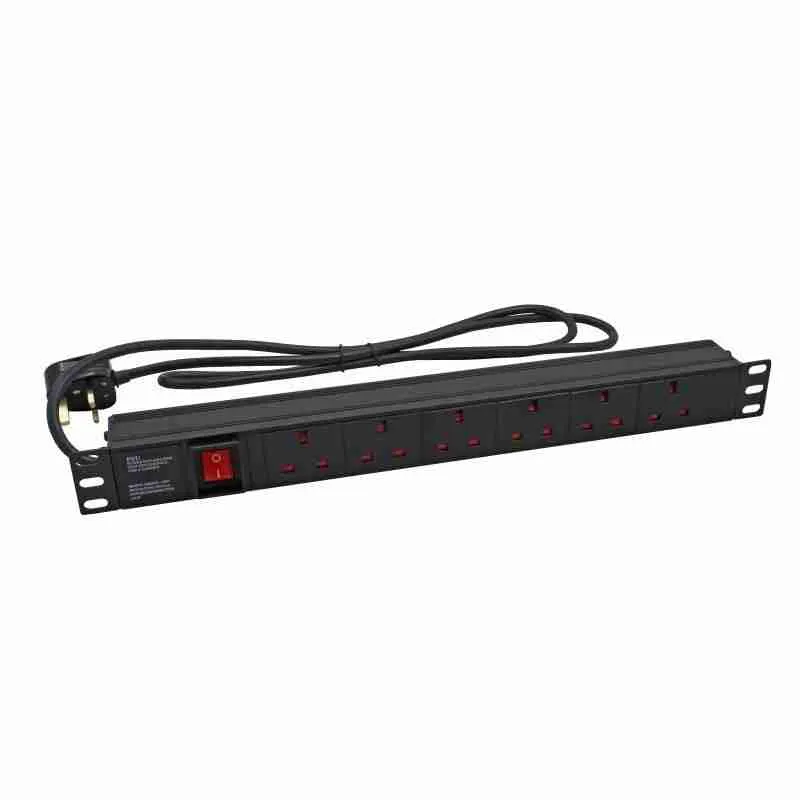

6 Way Black Cabinet Power Distribution PDU Details

Body: Body Material: Extruded Aluminum Body. Color: Black Socket Color: Black. End Cap Material: Coated Steel. End Cap Color: Black

Wiring: Cable Rating: 240VAC – 13 Amp. Fuse Rating: 13 Amp.

Cross-Sectional Area: 1.5mm². Earth Connection: Single Point, Internal.
