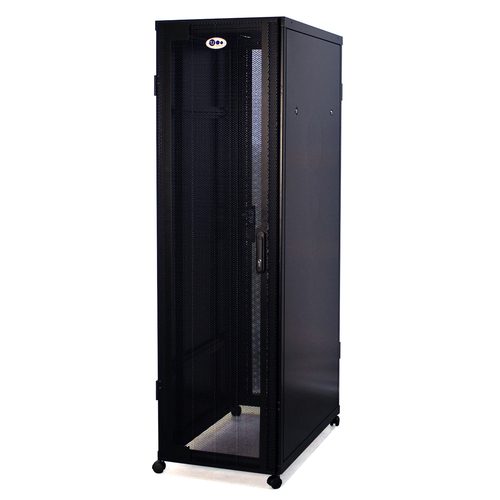

42U Mesh  Data Cabinet is compatible with all brands and provides the flexibility to house both desktop and 19″ rack-mount devices in the same unit.

The intelligent modular product design utilizes the vertical space effectively, with superior ventilation and excellent cable management.

Our 42U Data cabinets have the lockable perforated front or rear doors, a lockable side access doors and are available as pre-assembled or flat packed upon request.

42U Data cabinets 800 x 1000 are a highly popular choice for installers meeting the all-round requirements of data installation.

Net-Top Supplies Data cabinets that are easy to assemble and access, are safe and secure in use and durable once assembled.

All Data cabinets use a steel frame chassis construction for high load capacity.

A swing front door opening with removable side panels, large floor aperture, and quick-release door pins ensure easy access.

42U Data cabinets 800 x 1000 Dimensions:

W – width 800mm
D – depth 1000mm
H – mounting height 42U Mesh

The Data cabinet is made cold-rolled steel sheet.

42U   data cabinet grey 800mm x 1000mm. Wallmount 19″ server rack. Wall mount data cabinet. with adjustable 19′ profiles rack mount and lockable (ultralight) glass front door.

#image_title

42U Data cabinets 800 x 1000 Specs / Details

The front door has tempered glass and it can be opened to the left or right side. The kit includes a set of keys, square M6 nuts for rack rail, rack cabinet mounting set and a full set of screws.

Floor-standing data cabinets are of high quality and cost-effective 19” racks. All doors and panels are lockable and removable giving all-round access.

The fully adjustable 19” mounting profiles are printed numerically with the “U” height, for ease of installation and future use.

Cable entry is from directly underneath or in the back of the roof using cable entry glands.

Technical Specification

• Description: Industry standard design 19” floor data cabinets.
• Material: Cold rolled steel construction for cabinet frame, toughened glass panel insert in tapered glass framework for the front door.
• Finish: Smooth black RAL9005 powder-coated paint finish.
• Racks: Supplied with depth-adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels and equipment. All 800 wide cabinets come complete with side vertical management as standard.

Doors:
• Steel framed/toughened glass front door and Glass doors
• Steel side panels and All lockable and removable

Locks:
• Lockable front door, Rear door are lockable and Slam locks on side panels

Ventilation: Through roof panel and via optional fan tray.

Options: Delivered assembled as standard. Flat-packed optional.

Accessories: Fan trays (roof/rackmount). Plinth kits. Shelves (fixed / telescopic). Heavy-duty casters. Levelling feet. Baying kits. Earth bonding kit.

Profile distances: The mounting profiles can be adjusted forwards and backward to utilize almost the full depth of the cabinets.
